Rotary Phase Converters

Australian made-Australian designed-Australian supported

Features

• VolTrak , for a balanced 3 phase output supply
• High efficiancy design  98.5%  tested by Dept of Water Western Australia.

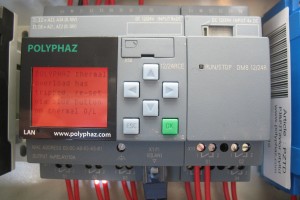

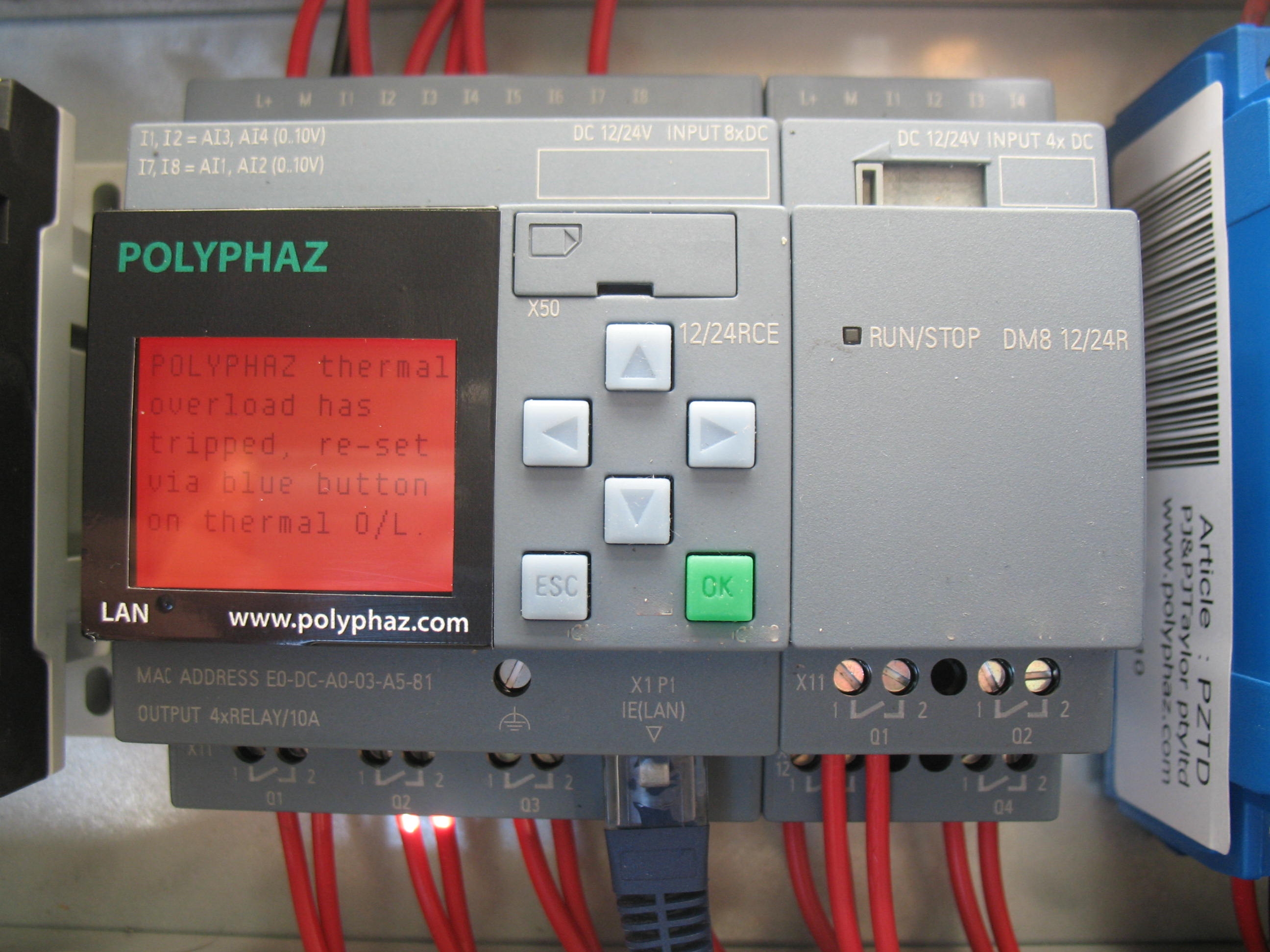

• FaultTrak, text display, eliminates the guesswork when something goes wrong
• LoadTrak , tracks output load/s & turns converter Off or On, without control wiring !
• NeuTrak , balanced output supply to neutral
• Specialized protection breaker with larger unit
• Vermin proof,  Don’t think its important ?
• SiteNet,  Ethernet enabled , remote monitoring-remote diagnosis-remote operation via the net to ANYWHERE
• Delivers full starting & running torque when sized correctly
• Produces a smooth sine wave
• IS  NOT a Variable speed drive, & does not contain high speed switching devices
• No Harmonic currents
• Two wire control / Single wire multi motor control
• Thermal overload protection , All models

 C-Tick approved



Benefits

• VolTrak , superior voltage balance =  lower running costs.
• FaulTrak , tells the operator what the fault is = lower down time.
• LoadTrak, reduces control wiring headaches= lower installation costs & running costs.
• NeuTrak , no modification to machine wiring
• Designed to keep vermin out! = Don’t underestimate what damage a mouse can do in a control cabinet !
• SiteNet,  product support direct from the factory to you where-ever you are.
• Field Serviceable, NO “all in one controller” separated components = field serviceable : [  capacitors switching-power supply-P.L.C-transducer etc ]  , as specified  by major O.E.Ms and govt authorities
• Site condition adaptable – NO ” one size fits all controller”, parameters , setting can be adjusted on site to suit conditions , as specified by major O.E.Ms and govt authorities.
• Screened cables NOT required
• Several three phase loads can be used from the output
• Lower cost , size & efficiency of three phase equipment

Download Rotary Product Information Here

• Rotary Brochure
• Rotary Model List
• Application Data Form
• Ten Questions to ask before you buy a phase converter

Rotary converters are suited to Single or multi motor loads & non rotating loads, three phase equipment can be used in any sequence or order up to the converter rating.

As the converter is a linear devise it produces a smooth sine wave & can be used to supply equipment control circuits, control transformers, P.L.Cs, V.S.D”s  & control circuit components , so no need to modifying your equipment or compromise on performance.

Models R15 > R75 are now “Ethernet enabled” via  SiteNet  so remote from site fault diagnosis , software updates,  parameter modifications , field voltage reports and many other features are now available, as a result we  can offer superior product support from our premises to anywhere that WIFI or GSM is available.

They are also fitted with a integrated web server for monitoring  / control via PC  smartphone or tablet.

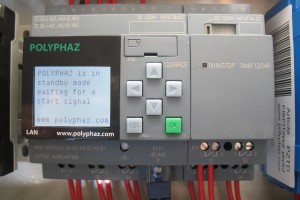

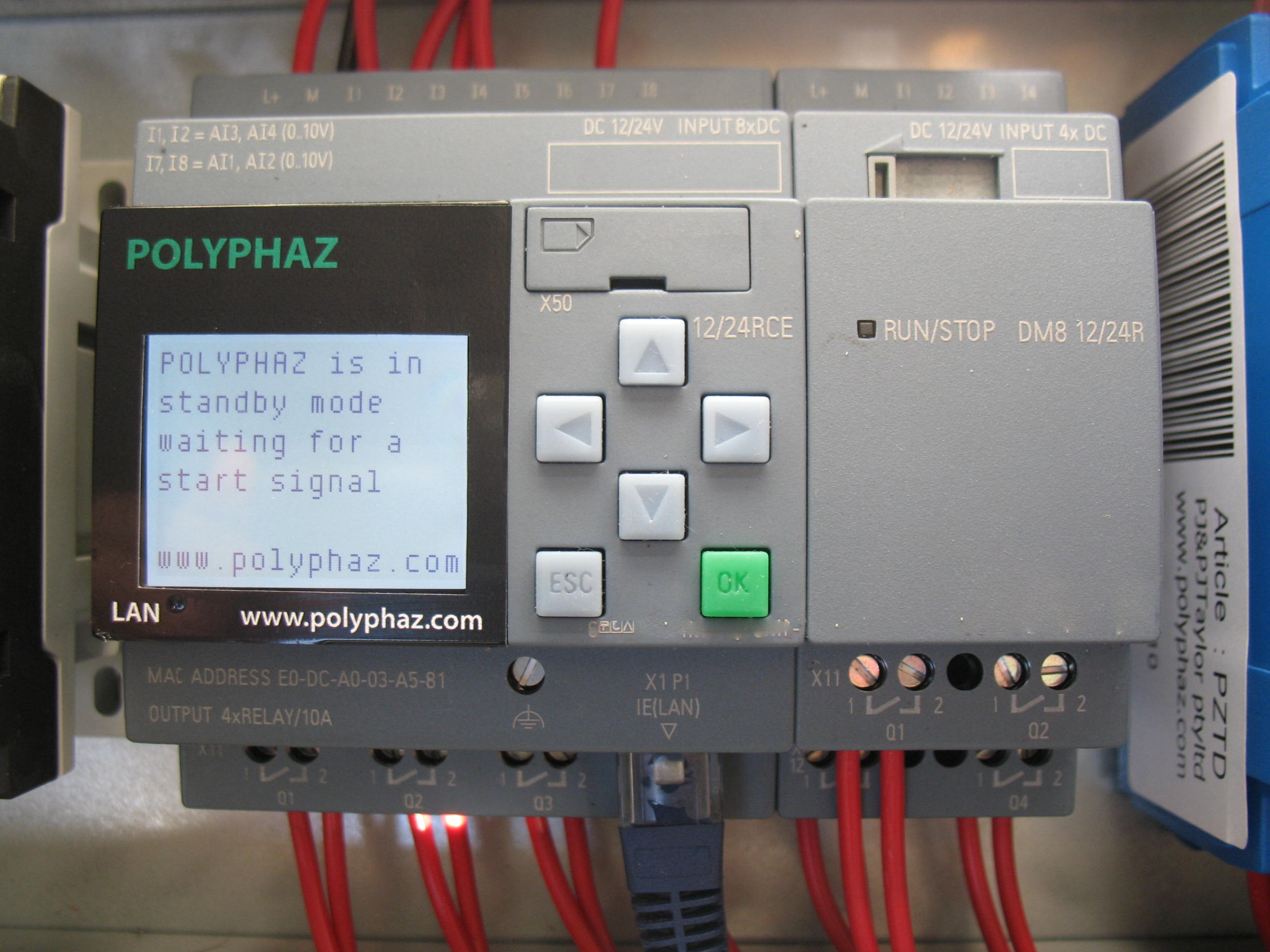

H.M.I display & Ethernet enabled
